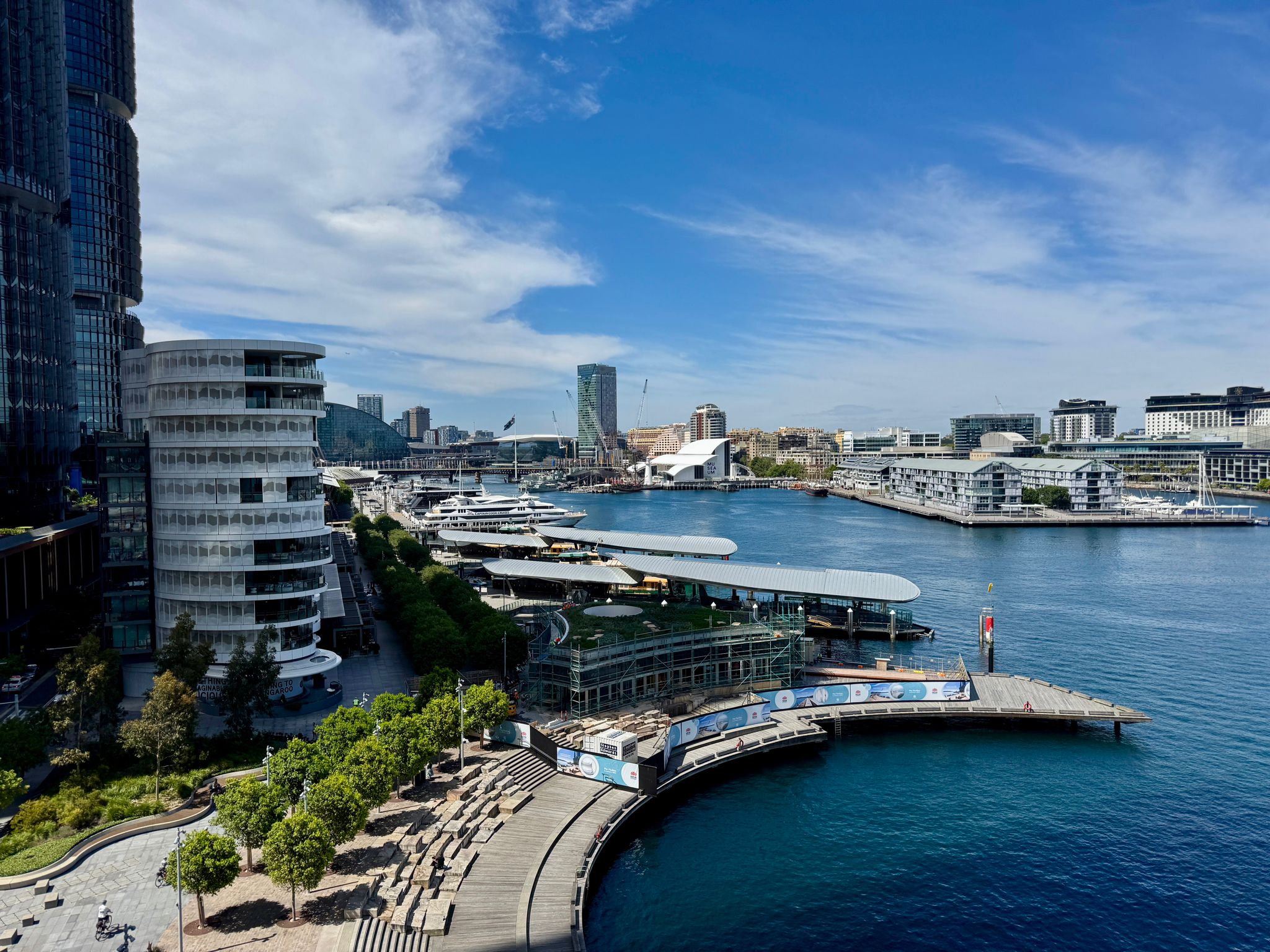

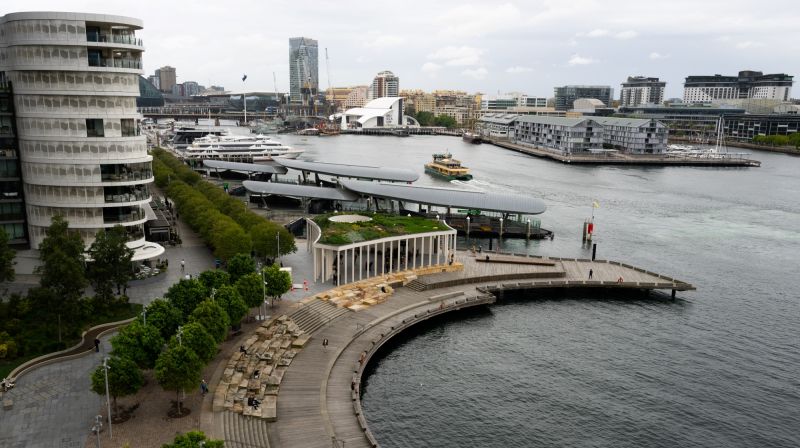

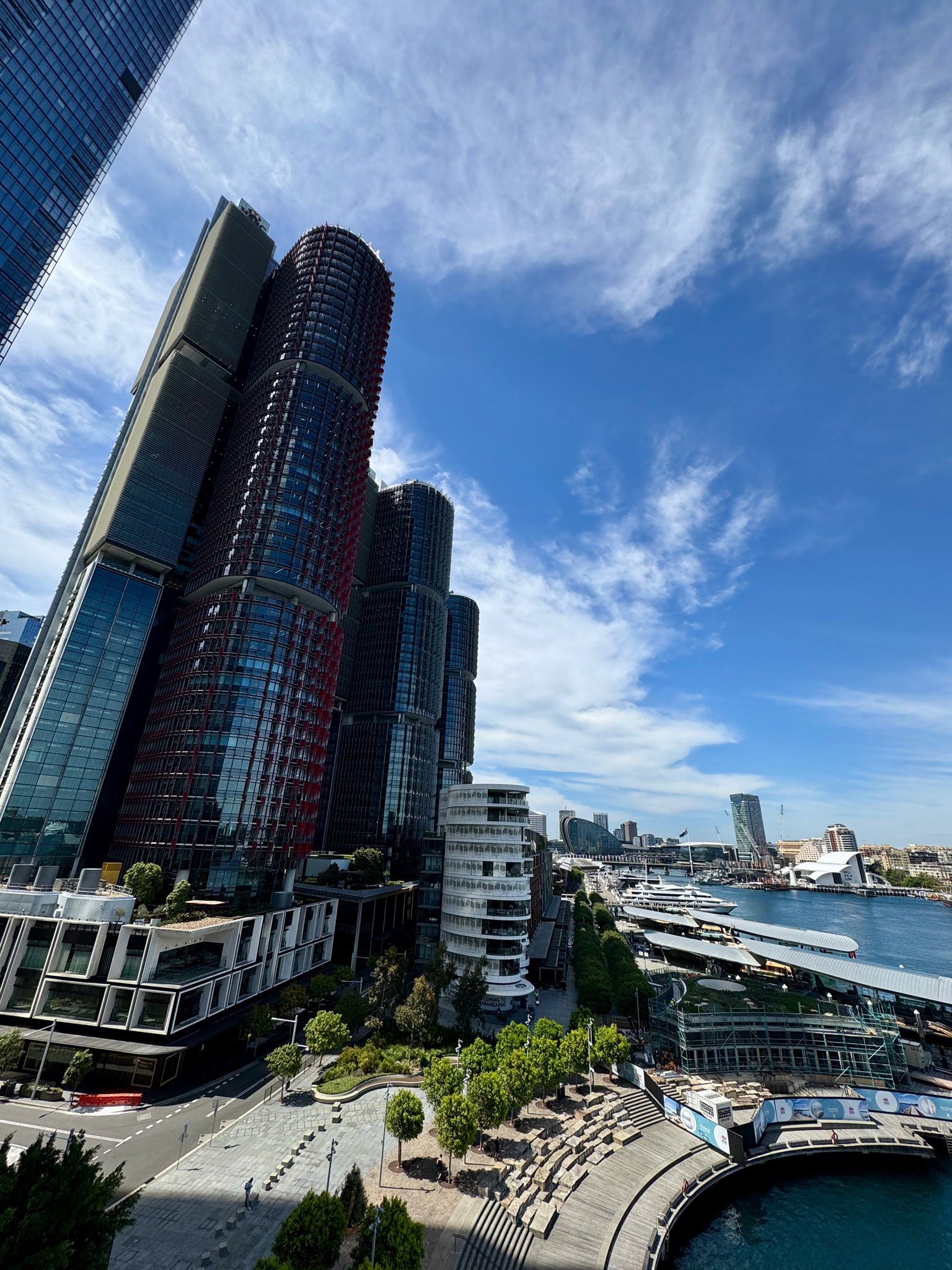

The Pier Pavilion, located at Watermans Cove in Barangaroo, is poised to become an iconic landmark on Sydney's foreshore. The roof garden was completed in October 2024 and this project was a collaborative effort involving several key stakeholders. The main works construction contract was awarded to Stephen Edwards Constructions with Infrastructure NSW working closely with them to manage the construction program and minimise the impact on neighbouring properties and businesses.  The design of Pier Pavilion by Besley & Spresser, was selected from a national design competition with over 170 entrants and the green roof was installed and will be maintained by Fytogreen.

Design and Architecture

The Pavilion’s structure is triangular in shape, with column elevations featuring curved sides that align with the surrounding coves.  It includes a green rooftop garden with indigenous plant species and will be clad in oyster shell concrete – whole, recycled Sydney rock oyster shells mixed with a terrazzo mix specifically designed for this project. (Images from Besley & Spresser, courtesy of Infrastructure NSW.)

Roof Garden by Fytogreen

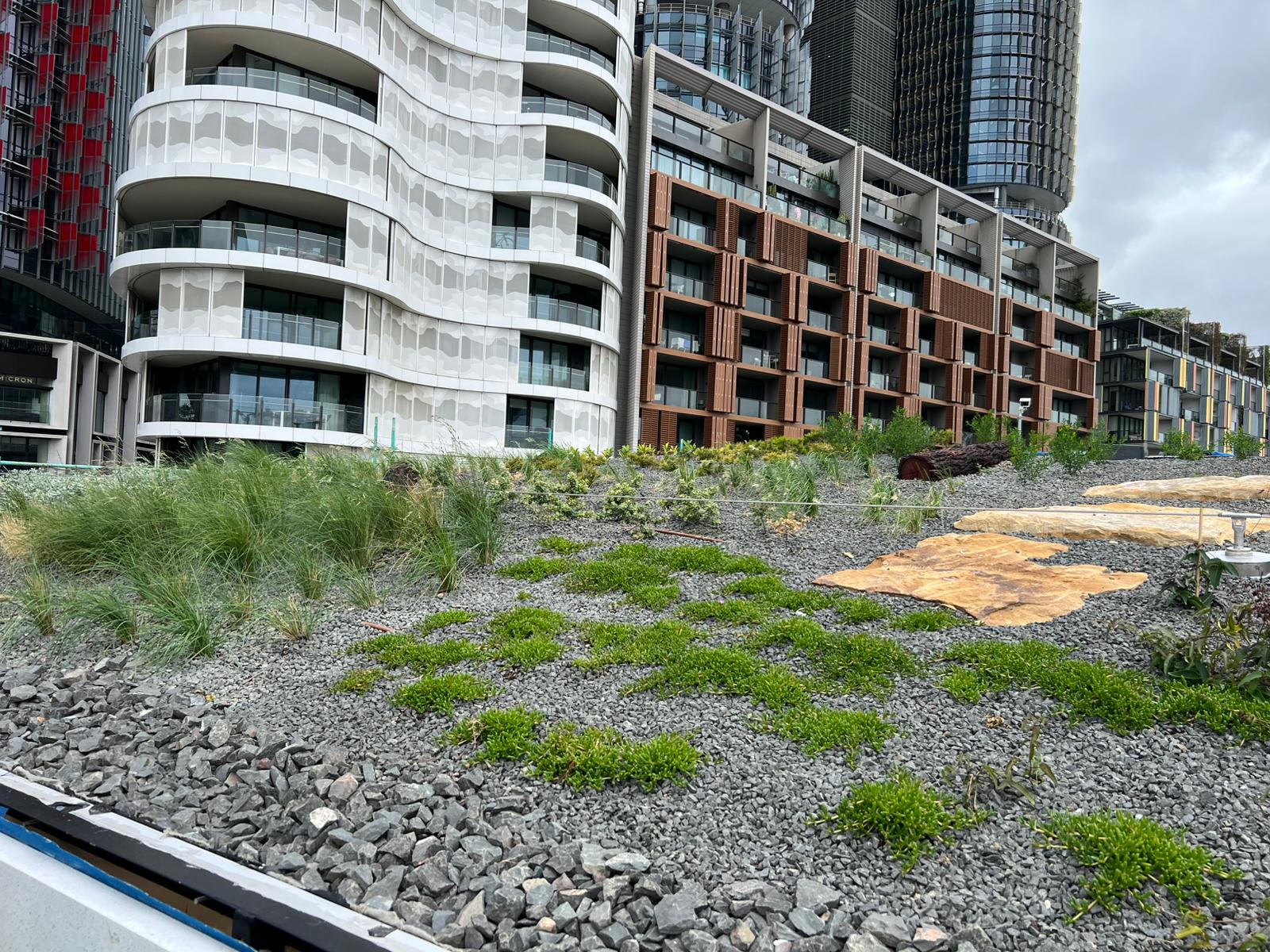

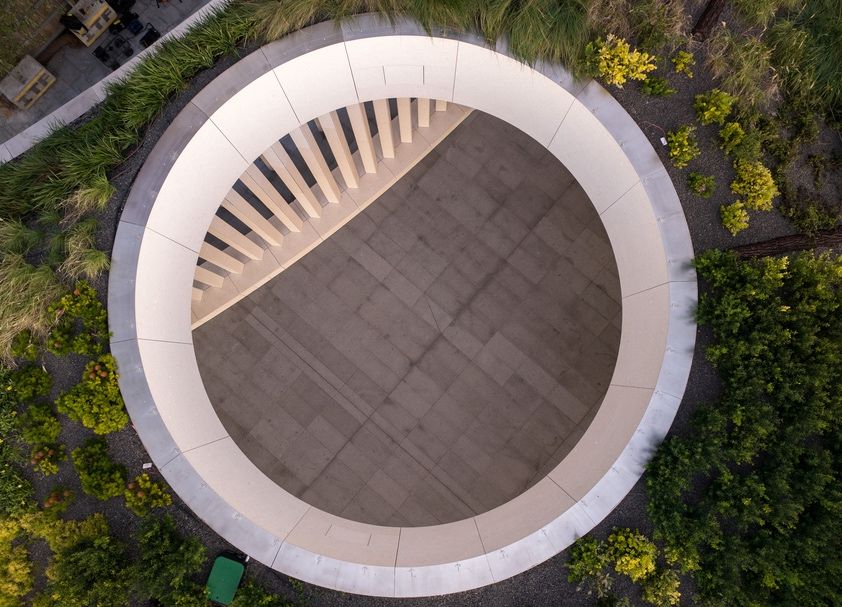

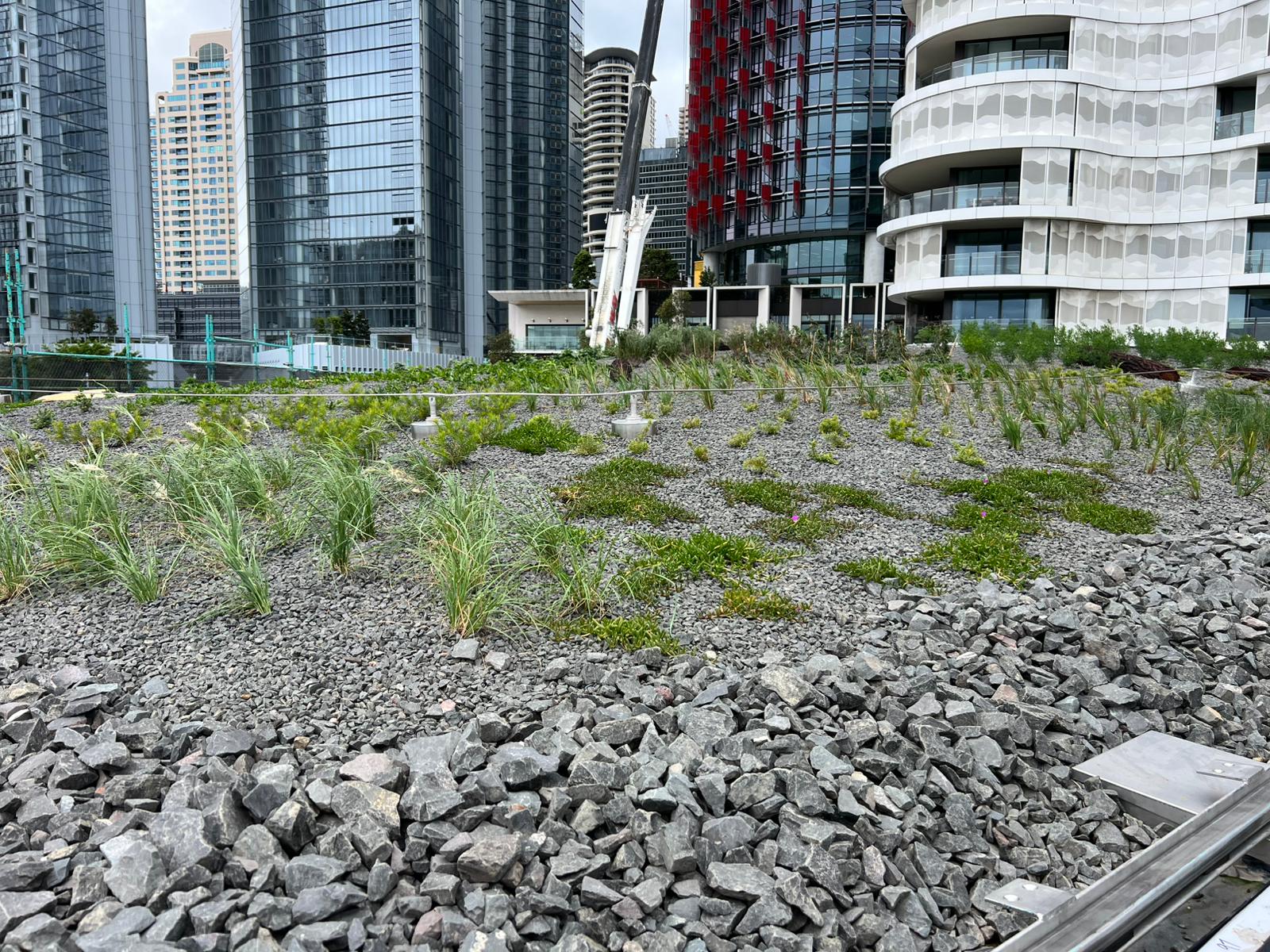

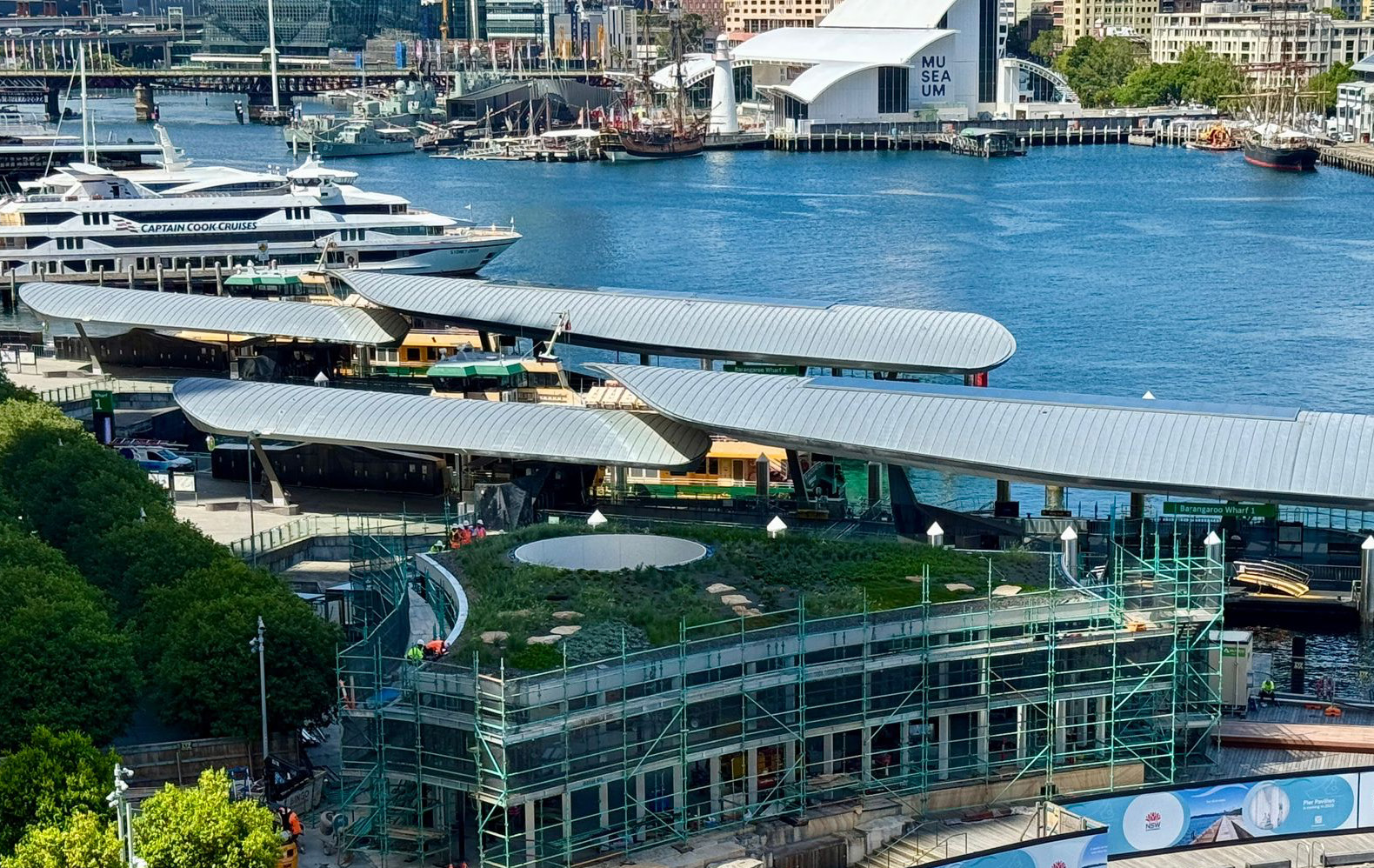

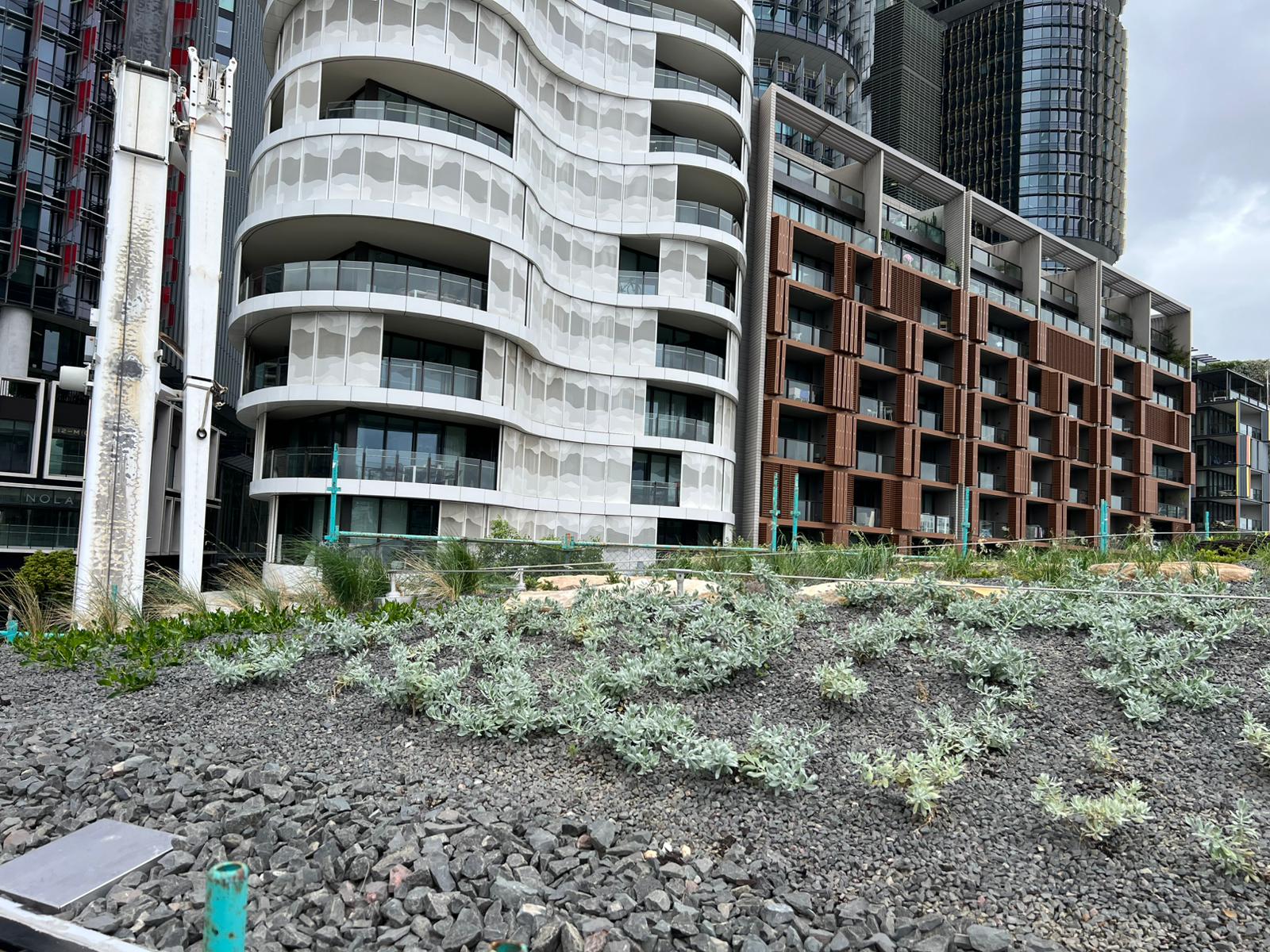

A distinct feature of the Pavilion is its landscaped roof garden, designed, installed, and maintained by Fytogreen. The newly established roof garden at the iconic Barangaroo Pier Pavilion will flourish into a vibrant communal landmark. The green roof spans 407m², incorporating 371m² of roof gardens and 36m² of ballast.

The green roof has an average profile depth of 250mm and includes:

• Plant Species: 18 indigenous species
• Total Plants: 2,415 plants

The roof garden is designed to attract wildlife and enhance biodiversity in the area. It features native plant species that are well-suited to the local climate and environment, including Austrodanthonia caespitosa, Banksia marginata, and Poa poiformis. The garden not only adds aesthetic value but also contributes to the ecological sustainability of the Pavilion.

Function and Public Benefits

The Barangaroo Pier Pavilion is designed to be a versatile public space where people can meet, gather, and relax by the water. The Pavilion's innovative design and sustainable features are set to become a significant addition to Sydney's architectural landscape. Its functionality reflects a deep connection to the site's natural and cultural context, creating a space that is both beautiful and beneficial to the community and environment
